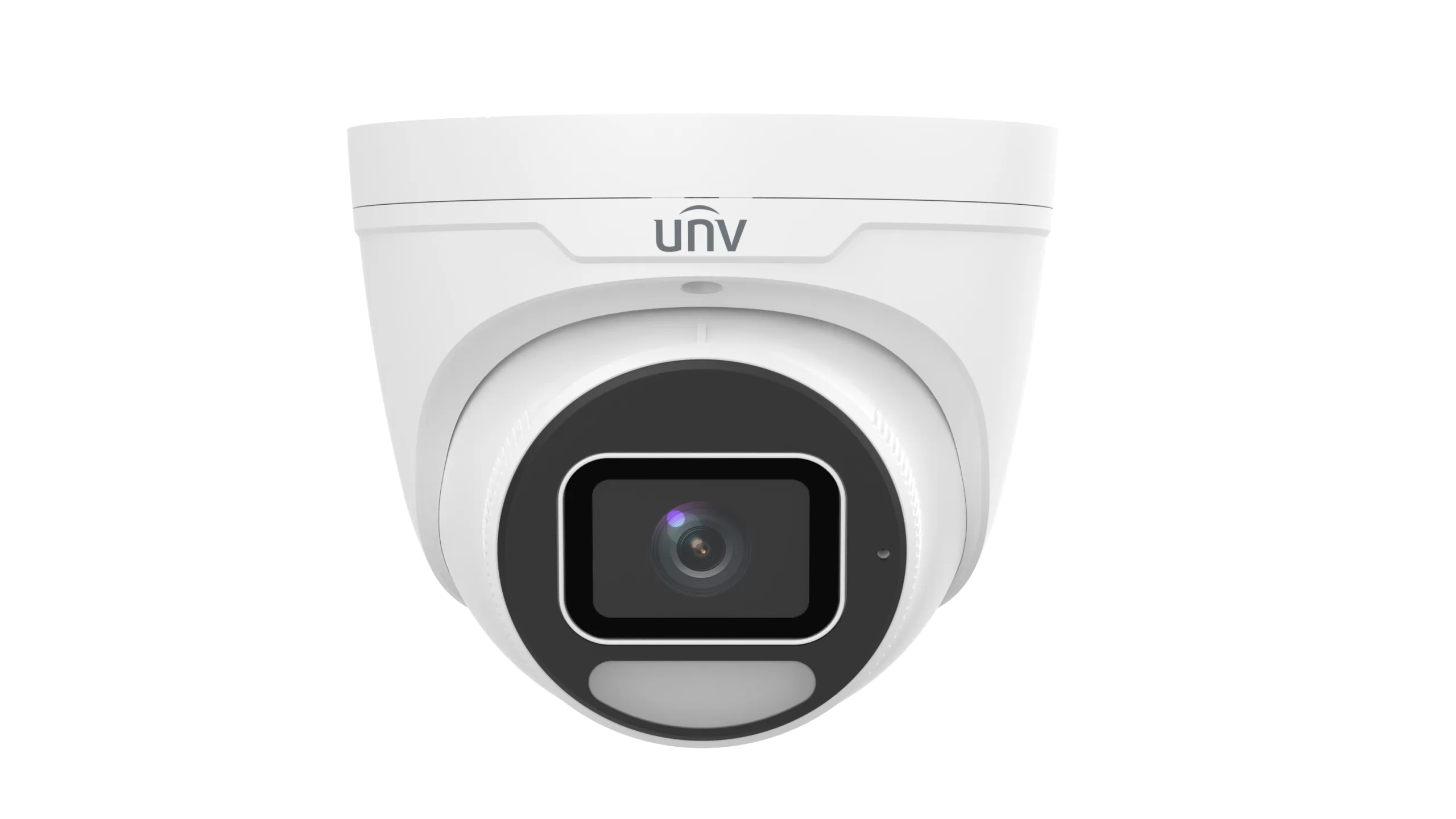

4K Turret IP Camera AI Intelligent ColorHunter – UNV – IPC3638SE-ADF28K-WL-I0

$749.00

Uniview 4K HD Intelligent ColorHunter Fixed Eyeball Turret IP Camera
SKU: IPC3638SE-ADF28K-WL-I0 Categories: , , , , , Tags: , , , , ,

Description

4K HD Intelligent ColorHunter Fixed Eyeball Network Camera

  •  High quality image with 8MP, 1/1.8″CMOS sensor
  • 8MP (3840*2160)@ 30(AI off)/25fps; 5.3MP (3072*1728)@ 30/25fps; 3.6MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps; 720P (1280*720), Max 30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • Intelligent People Flow Counting and Crowd Density Monitoring
  • Colorhunter technology ensures 24-hour full-color images with built in white LED
  • F1.0 Super aperture
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 corridor Mode
  • Alarm:1 in/1 out, Audio: 1 in/1 out
  • Supports 256 G micro SD card
  • IK10 vandal resistant and IP67 protection

Additional information

Weight 0.45 kg
Dimensions 3.7 × 5 × 5 in
Focal Length

2.8mm, 4mm

Specifications

IPC3638SE-ADF28K-WL-I0 IPC3638SE-ADF40K-WL-I0
Camera
Sensor 1/1.8″, 8.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.0005 lux (F1.0, AGC ON)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 72° Rotate: 0° ~ 360°
WDR 120dB
S/N >56dB
Lens
Lens [email protected] [email protected]
Iris Fixed
Field of View (H) 110.15° 94.29°
Field of View (V) 59.06° 49.73°
Field of View (D) 143.19° 115.97°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0 25.2 12.6 6.3
4.0 90.0 36.0 18.0 9.0
Illuminator
LED Distance Up to 30m (98ft)
LEDs Number 2
LED On/Off Control Auto/Manual
Video
Video Compression Ultra265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (3840*2160), Max 30fps;5.3MP (3072*1728), Max 30fps; 3.6MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Triple streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart Illumination Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Intelligent
Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis People counting, support people flow counting and crowd density monitoring
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio Detection
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Audio Bitrate 64 Kbps
Two-way audio Support
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
RS485 N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certifications
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 11W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) Φ129 x 110mm (Φ5.1” x 4.3”)
Weight 0.64kg (1.41lb)
Material Metal
Operating Conditions -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Reset Button Support
