4K Turret IP Camera AI Intelligent LightHunter IR – UNV – IPC3618SB-ADF28KM-I0

$749.00

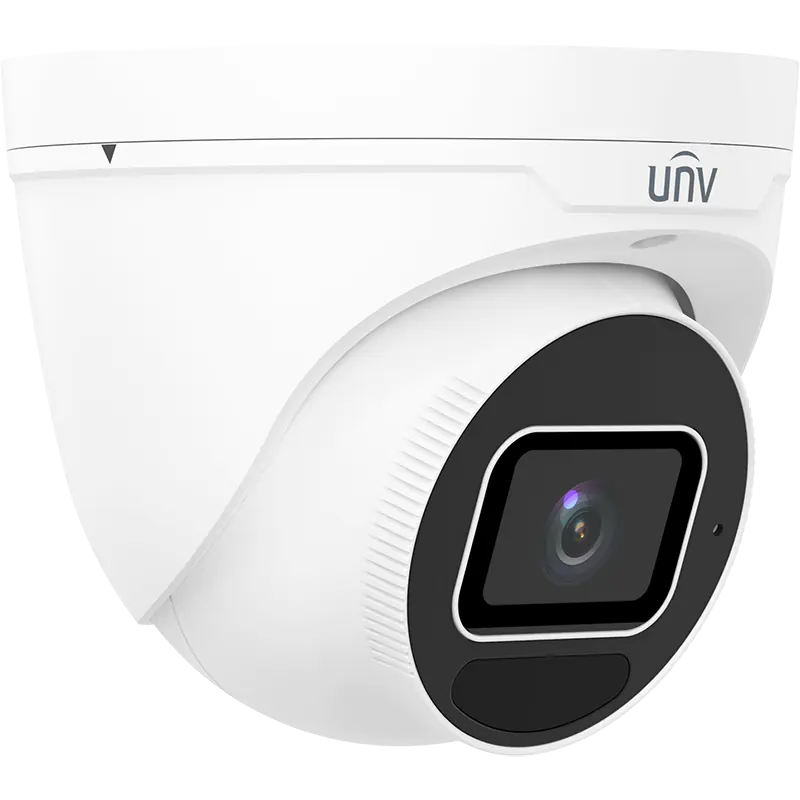

Uniview 4K 8MP HD Intelligent LightHunter IR Fixed Eyeball Turret IP Camera

Description

4K 8MP HD Intelligent LightHunter IR Fixed Eyeball Network Camera

  • High quality image with 8MP, 1/2.7″CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP
  • (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • Intelligent People Flow Counting and Crowd Density Monitoring
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card

Additional information

Weight 0.45 kg
Dimensions 3.7 × 5 × 5 in
Focal Length

2.8mm, 4mm

Specifications

  • Download spec sheet for IPC3618SB-ADF28(40)KM-I0
    IPC3618SB-ADF28KM-I0 IPC3618SB-ADF40KM-I0
    Camera
    Sensor 1/2.7″, 8.0 megapixel, progressive scan, CMOS
    Minimum Illumination Colour: 0.0025 lux (F1.6, AGC ON)
    0 lux with IR on
    Day/Night IR-cut filter with auto switch (ICR)
    Shutter Auto/Manual, 1 ~ 1/100000s
    Adjustment angle Pan: 3° ~ 360° Tilt: 0° ~ 80° Rotate: 3° ~ 360°
    WDR 120dB
    S/N >56dB
    Lens
    Lens [email protected] [email protected]
    Iris Fixed
    Field of View (H) 112.4° 86.5°
    Field of View (V) 60.1° 44.1°
    Field of View (D) 146.1° 112.5°
    DORI
    DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
    2.8 84.0 33.6 16.8 8.4
    4.0 120.0 48.0 24.0 12.0
    Illuminator
    IR Range Up to 30m (98 ft) IR range
    Wavelength 850nm
    IR On/Off Control Auto/Manual
    Video
    Video Compression Ultra 265, H.265, H.264, MJPEG
    H.264 code profile Baseline profile, Main profile, High profile
    Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
    Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    Video Bit Rate 128 Kbps~16 Mbps
    U-code Support
    OSD Up to 8 OSDs
    Privacy Mask Up to 4 areas
    ROI Up to 8 areas
    Video Stream Triple streams
    White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
    Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
    Digital Noise Reduction 2D/3D DNR
    Smart IR Support
    Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
    Dewarping Support
    HLC Support
    BLC Support
    Defog Digital Defog
    Intelligent
    Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
    Statistical Analysis People counting, support people flow counting and crowd density monitoring
    Events
    Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
    General Function Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication
    Audio
    Audio Compression G.711
    Audio Bitrate 64 Kbps
    Suppression Support
    Sampling Rate 8KHZ
    Storage
    Edge Storage Micro SD, up to 256GB
    Network Storage ANR, NAS(NFS)
    Network
    Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
    Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
    User/Host Up to 32 users. 3 user levels: administrator, common user, operator
    Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
    Client EZStation
    EZView
    EZLive
    Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
    Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
    Interface
    Audio I/O N/A
    Alarm I/O N/A
    RS485 N/A
    Built-in Mic Support
    Built-in Speaker N/A
    WIFI N/A
    Network 1 * RJ45 10M/100M Base-TX Ethernet
    Video Output N/A
    Certifications
    EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
    FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
    Safety CE LVD (EN 62368-1:2014+A11:2017)
    CB (IEC 62368-1:2014)
    UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
    Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
    Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
    General
    Power DC 12V±25%, PoE (IEEE 802.3af)
    Power consumption: Max 5.0W
    Power Interface Ø 5.5mm coaxial power plug
    Dimensions (L × W × H) Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
    Weight 0.44kg (0.97lb)
    Material Metal
    Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    Surge Protection 4KV
    Reset Button N/A
