Description

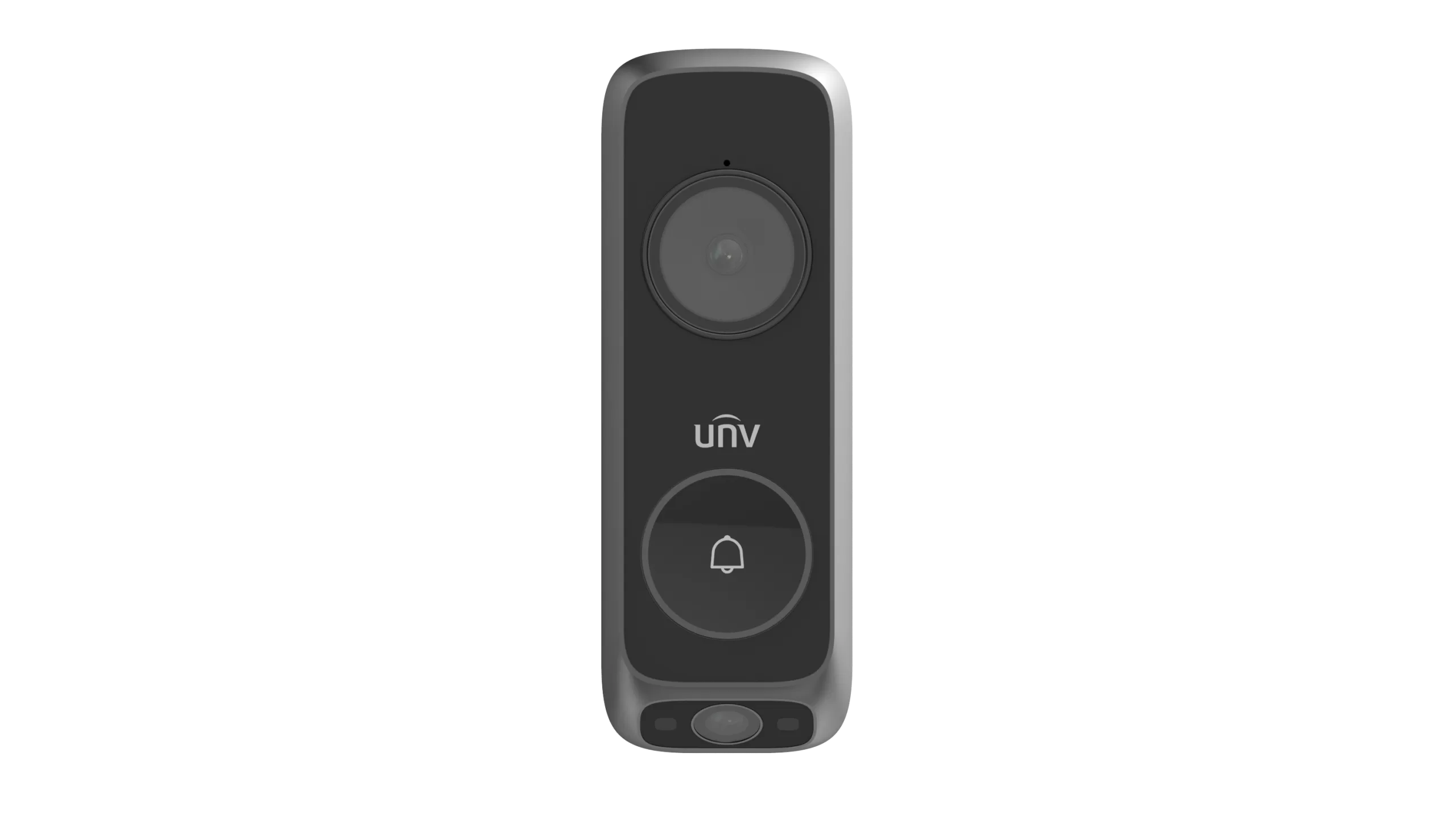

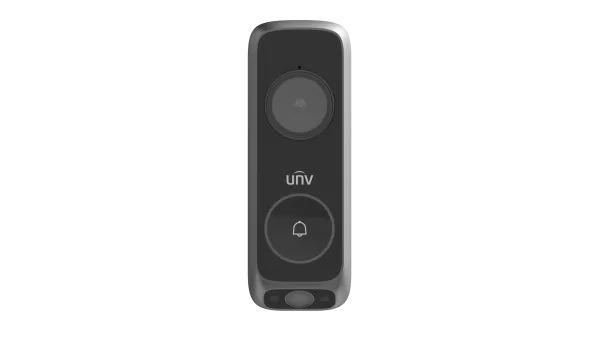

Uniview Dual-Lens Wi-Fi Video Doorbell
Model: ED-525B-WB
Key Features
- Compatible with both mechanical and wireless chimes.
- Can be integrated with Uniview NVR systems for live viewing, video playback, and alarm event searches.
- Capable of sending motion detection, human presence, and package detection alerts to UNV-Link and NVR platforms.
- Features dual cameras (3 MP main and 2 MP secondary): the main lens focuses on visitor identification, while the secondary camera monitors the area near the doorstep for an expanded field of view.
- Utilizes true HDR and WDR technologies to deliver clearer visuals in scenes with strong backlighting.
- Offers integration with the UNV-Link mobile app, enabling users to receive and respond to visitor calls remotely.
- Supports Sub-1GHz wireless chime connectivity.
- Equipped with dual-band Wi-Fi (2.4 GHz and 5 GHz) and Wi-Fi 6 support for smoother streaming and real-time monitoring.
Specifications
| Megapixel | 3MP, 2MP |
|---|---|
| Product Type | Doorbell |
| Lens Length | Fixed |
| Compliance | NDAA |
| Features | AI |
| Model | ED-525B-WB |
| Resolution — main camera | 3MP |
| Resolution — sub camera | 2MP |
| FOV — main camera | Horizontal: 116° Vertical: 82.5° Diagonal: 131° |
| FOV — sub camera | Horizontal: 96.8° Vertical: 52.6° Diagonal: 109.9° |
| power kit | 240 mAH rechargeable lithium battery (for mechanical chime) |
| Charge temperature | 0 °C to 45 °C |
| Motion detection alarm | Support |
| UMD alarm | Supports human body detection alarm |
| Package detection alarm | Support |
| Operating frequency band | 2.4 GHz and 5G Hz |
| BLE function | Compatible, integrated BLE, supports network connection via Bluetooth |
| Antenna type | Built-in omnidirectional antenna |
| WLAN | 802.11 b/g/n/ax |
| Encryption | WPA-PSK/WPA2-PSK/WPA3-personal |
| Bluetooth | Support, integrated in Wi-Fi chip |
| SUB-1G | Supported, for chime connection |
| Chimes | Max. 3 wireless chimes or 1 mechanical chime |
| Reset button | 1 micro switch for both pairing and reset |
| Built-in Mic | Support |
| Built-in speaker | Support |
| Interface protocol | UNV private protocol |
| Network protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP |
| Illumination scheme | IR + white light |
| Illumination distance | IR: 5 meters White light: 2 meters |
| Min. Illumination | 0.02 lux |
| Dimensions | 55.8 mm × 156.5 mm × 27.9 mm |
| Weight | Net weight: 142g Gross weight: 295g |
| Power consumption | 10W |
| Installation method | With bracket installation, the power cable is installed on the bracket, and the doorbell is connected to the bracket through the contacts. |
| Button | One call button |
| Power source | Contact: AC 12 V to 24 V |
| Operating temperature | -30 °C to 60 °C |
| Ingress protection | IP65 |
| WDR | Supports DWDR, main camera 80dB, sub camera 58dB |
All Uniview products include a 1-year warranty. Professional installation available in Edmonton and across Alberta — contact us for a quote.
