Description

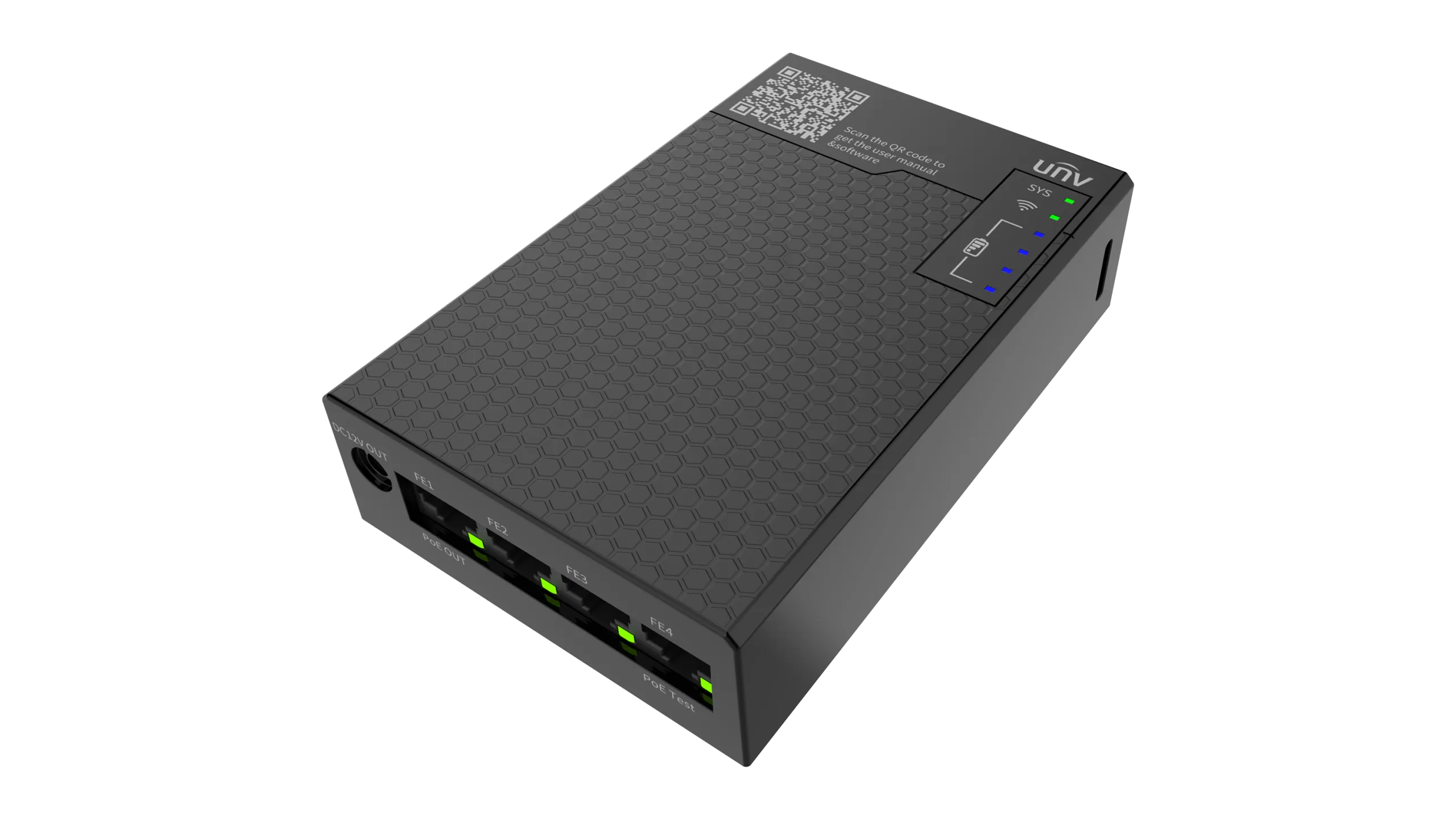

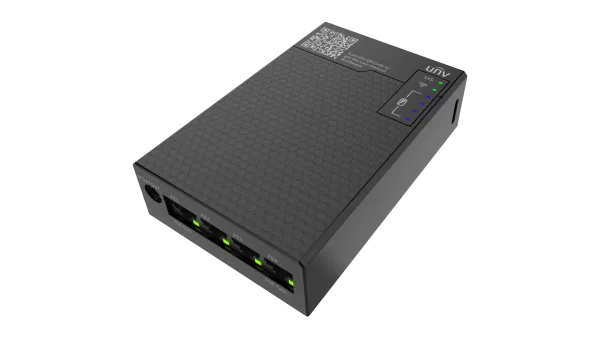

Uniview UNV-Link Pro Connect Box
Model: GCB01-B7
Key Features
- 4 x RJ45 10M/100M Ethernet ports;
- Port 1 supports POE (IEEE 802.3af)
- PSE voltage detection range: 1V–56V; supports IEEE 802.3af/at/bt
- DC voltage detection range: 1V–56V
- 2.4GHz Wi-Fi (IEEE 802.11b/g/n)
- 18650 lithium battery with 7500mAh capacity
- Power input: DC 5V/2A via USB-C
- Power output: DC 12V/1A and DC 5V/1A via USB-A
Specifications
| Network | 4 x RJ45 10M/100M Base-TX EthernetNetwork Port 1 Support POE (IEEE802.3af) OutputNetwork Port 4 Support PSE Voltage Test |
|---|---|
| Voltage Test | 1 x PSE Voltage Test(PSE voltage detection Range： 1V~56V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt) 1 x DC voltage Test(DC voltage detection Range： 1V~56V) |
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n) |
| Battery Capacity | 18650 lithium battery, 7500mAH |
| Power Input | 1 x DC 5V/2A max, type-c |
| Power Output | 1 x DC 12V/1A output; 1 x DC 5V/1A output, type-A |
| LED Indicator | System indicator, WiFi indicator, Battery indicator |
| Dimensions | 130 × 85 × 33mm (5.1” × 3.3” × 1.3”) (L x W x H) |
| Working Environment | -20 °C ~ 60 °C (-4 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Reset Button | Support |
All Uniview products include a 1-year warranty. Professional installation available in Edmonton and across Alberta — contact us for a quote.
