Description

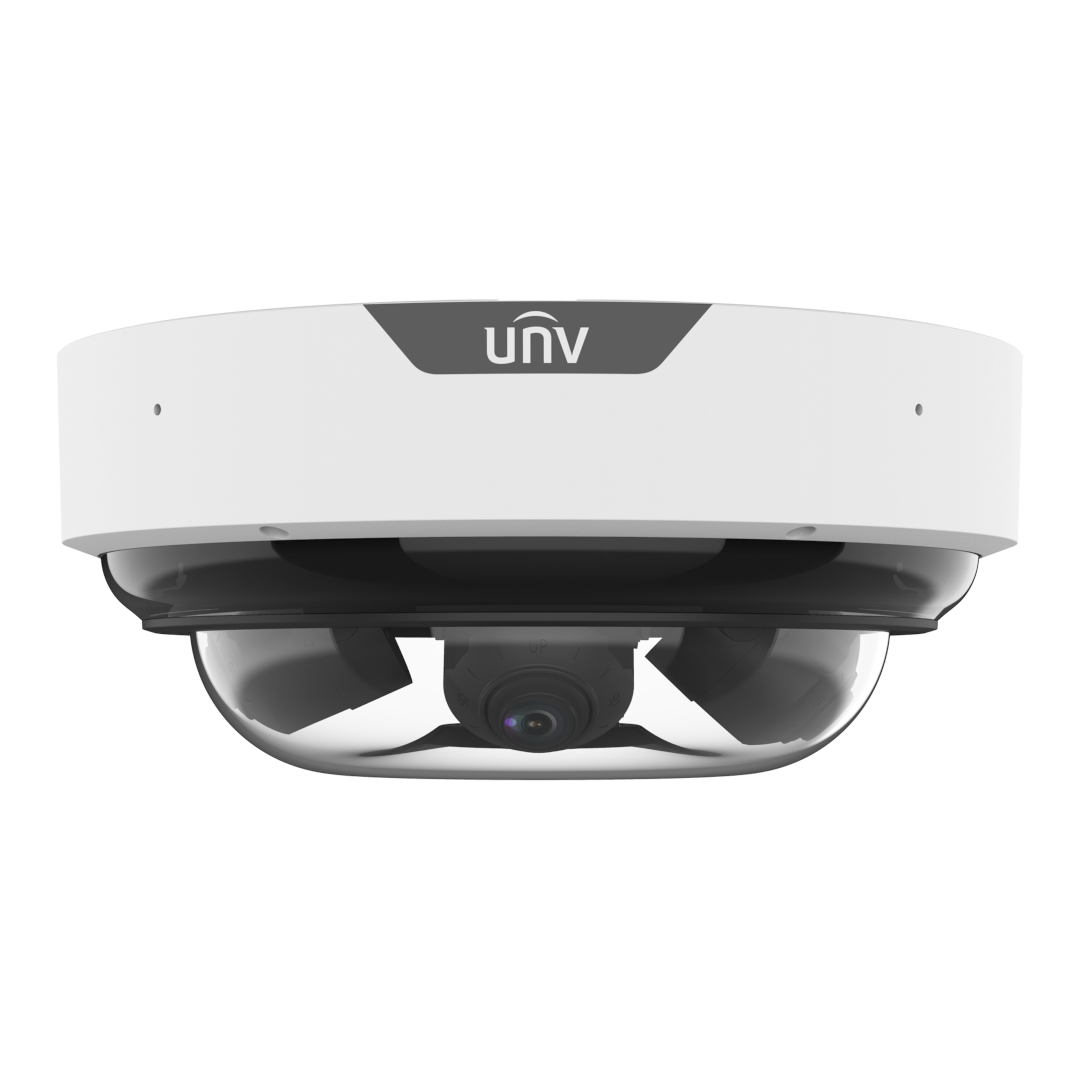

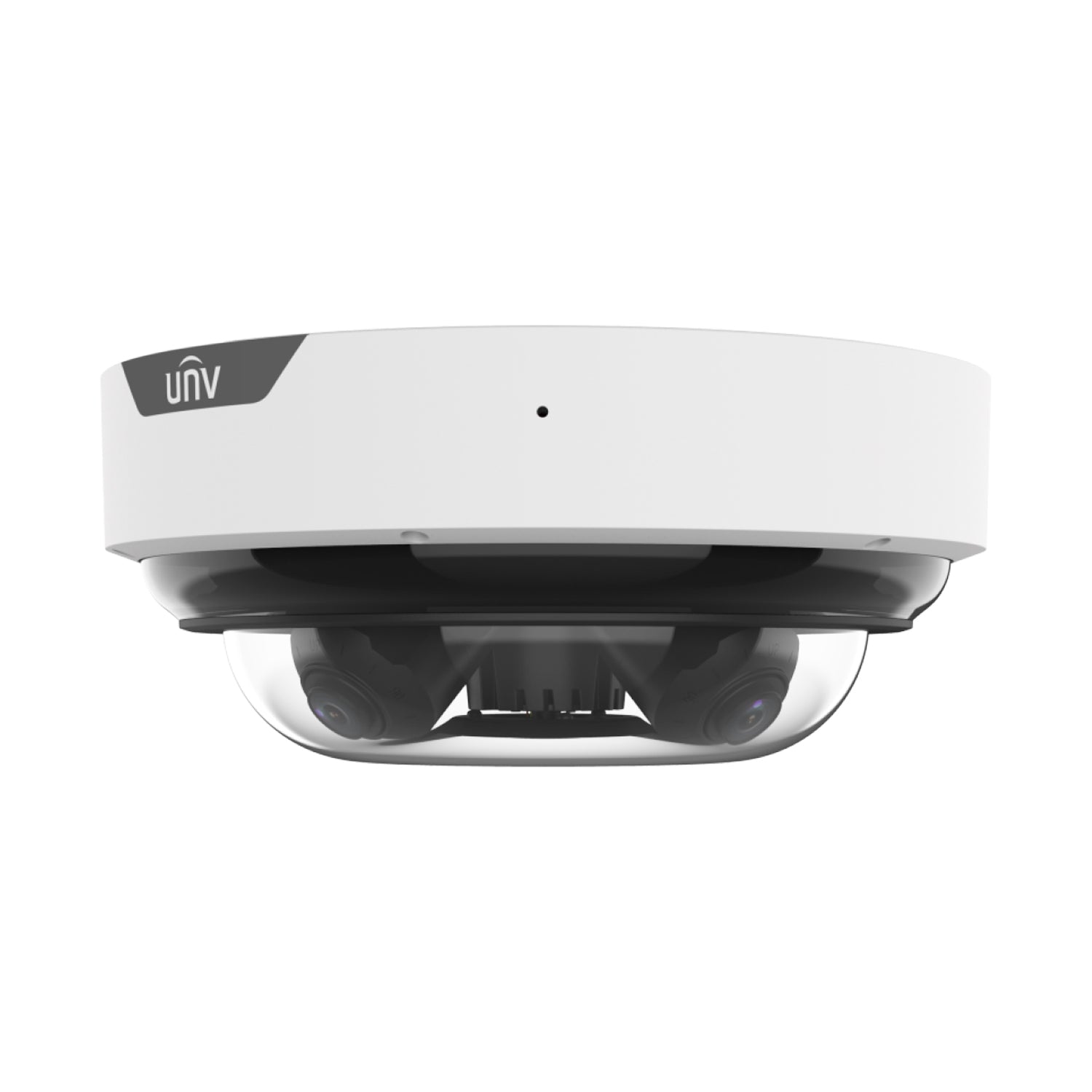

The IPC8645EA-ADZKM-I1 is a multi-sensor IP dome camera with four 5 MP modules, each on its own motorised varifocal lens. The four streams stitch into a panoramic 180° to 360° image (depending on lens placement) with no fisheye distortion — suitable for parking lots, intersections and large outdoor venues. LightHunter imaging keeps each sensor’s low-light video clear.
- 4x 5 MP sensors, 20 MP combined; H.265+ compression on each stream.
- 120 dB WDR for backlit and high-contrast scenes.
- Each module independently aimable for tailored coverage.
- AI analytics across all four sensors: human and vehicle classification, line-cross, intrusion, area alerts.
- Smart IR up to 30 m on each module.
- IP67 / IK10 housing; PoE+ powered. Order code IPC8645EA-ADZKM-I1.
Specifications
| Technology | LightHunter, AI, WDR |
|---|---|
| Tier | Professional |
| Series | Professional |
| Megapixel | 5MP |
| Compliance | IK10, IP67, NDAA |
| Features | AI |
| Sensor | 1/2.7″ CMOS |
| Min. Illumination | Colour: 0.002 lux (F1.2, AGC ON) 0 lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| WDR | 130 dB |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 65°, Rotate: 0° ~ 355° |
| S/N | >56 dB |
| Focal Length | 2.7 to 13.5 mm |
| Optical Zoom | 5X |
| Iris | F1.2 * 4 |
| Field of View (H) | (W)110.3°~(T)31° |
| Field of View (V) | (W)57.1°~(T)17.5° |
| Field of View (D) | (W)143.4°-(T)38.1° |
| Iris Type | Fixed |
| DORI Distance (Detect) | 70.9m~247.5m(232.5ft~812.0ft) |
| DORI Distance (Observe) | 28.4m~99.0m(93.0ft~324.8ft) |
| DORI Distance (Recognize) | 14.2m~49.5m(46.5ft~162.4ft) |
| DORI Distance (Identify) | 7.1m~24.8m(23.3ft~81.2ft) |
| Illumination Distance (IR) | 50 m (164.0 ft) |
| IR On/Off Control | Auto/Manual |
| Exception Detection | Scene change, Defocus detection, Object removed, Object Left Behind |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density monitoring |
| Motion Detection | Support |
| Tampering Detection | Support |
| Audio Detection | Support |
| UMD (Ultra Motion Detection) | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Defog | Digital defog |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate-Main Stream | Channel * 4 5MP (2880*1620), Max 30fps; 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Frame Rate-Sub Stream | Channel * 4 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Frame Rate-Third Stream | Channel * 4 D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Frame Rate Recommendation | Channel * 4 2880*1620@30fps+1080P@30fps+D1@30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps * 4Channel |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 10 OSDs * 4 Channel |
| Privacy Mask | Up to 8 * 4Channel |
| Audio Compression | G.711U, G.711A |
| Two-way Audio | Support |
| Sampling Rate | 8 kHz |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 3/2 |
| Built-in Mic | Support |
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529), IK10 (IEC 62262) |
| Corridor Mode | Support |
| Power | DC 24V±25%, AC 24V±25%, PoE (IEEE802.3bt) |
| Built-in DC12V Output | Support |
| Power Consumption | Max 31W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | Φ 318 x 136.6 mm (Φ 12.52″ x 5.38″)(Φ x H) |
| Weight | 4.77Kg（10.52lb） |
| Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: 5%~95% RH |
| Storage Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: 5%~95% RH |
| Surge Protection | 6 KV |
| Max Resolution | 5MP |
