Description

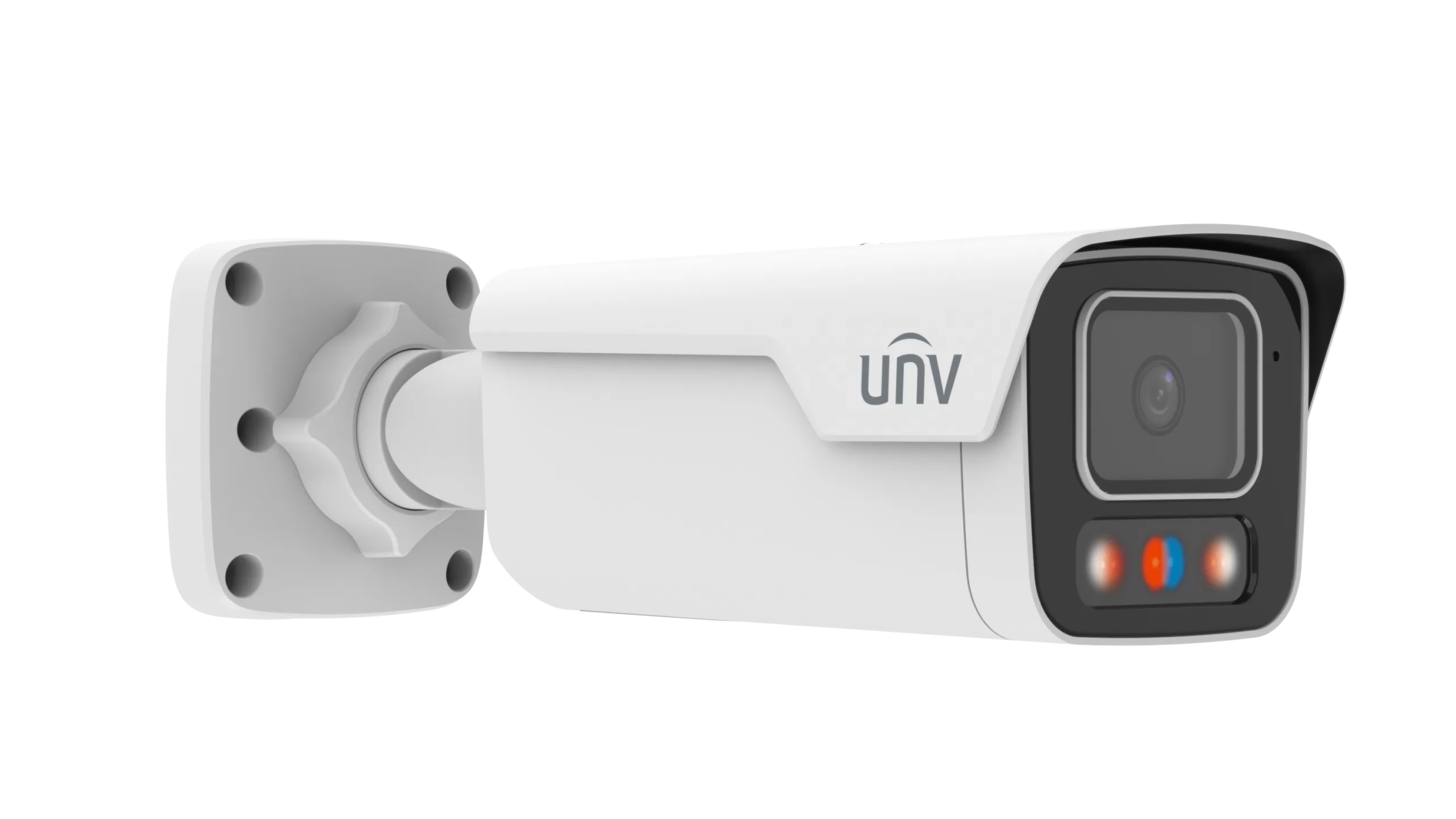

Uniview 8 MP Tri-Guard ColorHunter VF Bullet Camera 2.8-12mm
Model: IPC2B18SE-ADZKMC-WP-I1
Resolution: 8 MP
Lens: Vari-Focal
Key Features
- High quality image with 8MP, 1/1.8″ CMOS sensor
- Features an F1.2 large-aperture lens
- 8MP (3840 × 2160)@30/25 (default) fps; 5MP (3072 × 1728)@30/25 fps; 4MP (2560 × 1440)@30/25 fps; 2MP (1920 × 1080)@30/25 fps
- Ultra 265, H.265, H.264, MJPEG
- Colorhunter with Wise ISP technology ensures 24 hour full color images
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
Why Choose This Camera?
Tri-Guard active-deterrence series with built-in light and siren. ColorHunter imaging delivers true full-colour video around the clock; a warm-light LED supplements the scene at night so faces, vehicle plates, and clothing colours stay visible. Built-in Active Deterrence combines a strobe light and audio alarm so the camera can warn off intruders the moment a smart-detection event fires.
Installation
Wall or pole mount with the integrated bracket; junction box recommended for cable protection. Single PoE cable for power and data.
Specifications
| Series | Professional |
|---|---|
| Megapixel | 8MP |
| Product Type | Bullet |
| Lens Length | Vari-Focal |
| Compliance | IK10, IP67, NDAA, NEMA 4X |
| Features | Active Deterrence, AI, Wise-ISP |
| Max Resolution | 8 MP |
| Sensor | 1/1.8″ CMOS |
| Min. Illumination | Colour: 0.0005 lux ( F1.2, AGC ON) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N | > 56 dB |
| WDR | 130 dB |
| Focal Length | 2.8 to 12 mm |
| Iris Type | Fixed |
| Iris | F1.2 |
| Field of View (H) | 111.5° to 54.1° |
| Field of View (V) | 60.2° to 30.6° |
| Field of View (D) | 128.7° to 61.9° |
| Lens Type | Motorized |
| DORI Distance (Lens) | 2.8 mm, 12.0 mm |
| DORI Distance (Detect) | 63.0m (206.7ft), 270.0m (885.8ft) |
| DORI Distance (Observe) | 25.2 m (82.7 ft), 108.0 m (354.3 ft) |
| DORI Distance (Recognize) | 12.6 m (41.3 ft), 54.0 m (177.2 ft) |
| DORI Distance (Identify) | 6.3 m (20.7 ft), 27.0 m (88.6 ft) |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | 40 m (131.2 ft) |
| Illumination Distance (Warm Light) | 40 m (131.2 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate-Main Stream | 8MP (3840 × 2160), Max 30 fps; 5MP (3072 × 1728), Max 30 fps; 4MP (2560 × 1440), Max 30 fps; 1080P (1920 × 1080), Max 30 fps; 720P (1280 × 720), Max 30 fps |
| Frame Rate-Sub Stream | 1080P (1920 × 1080), Max 30 fps; ; 720P (1280 × 720), Max 30 fps; D1 (720 × 576), Max 30 fps; 640 × 360, Max 30 fps; 2CIF (704 × 288), Max 30 fps; CIF (352 × 288), Max 30 fps |
| Frame Rate-Third Stream | D1 (720 × 576), Max 30 fps; 640 × 360, Max 30 fps; 2CIF (704 × 288), Max 30 fps; CIF (352 × 288), Max 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
All Uniview products include a 1-year warranty. Professional installation available in Edmonton and across Alberta — contact us for a quote.
