Description

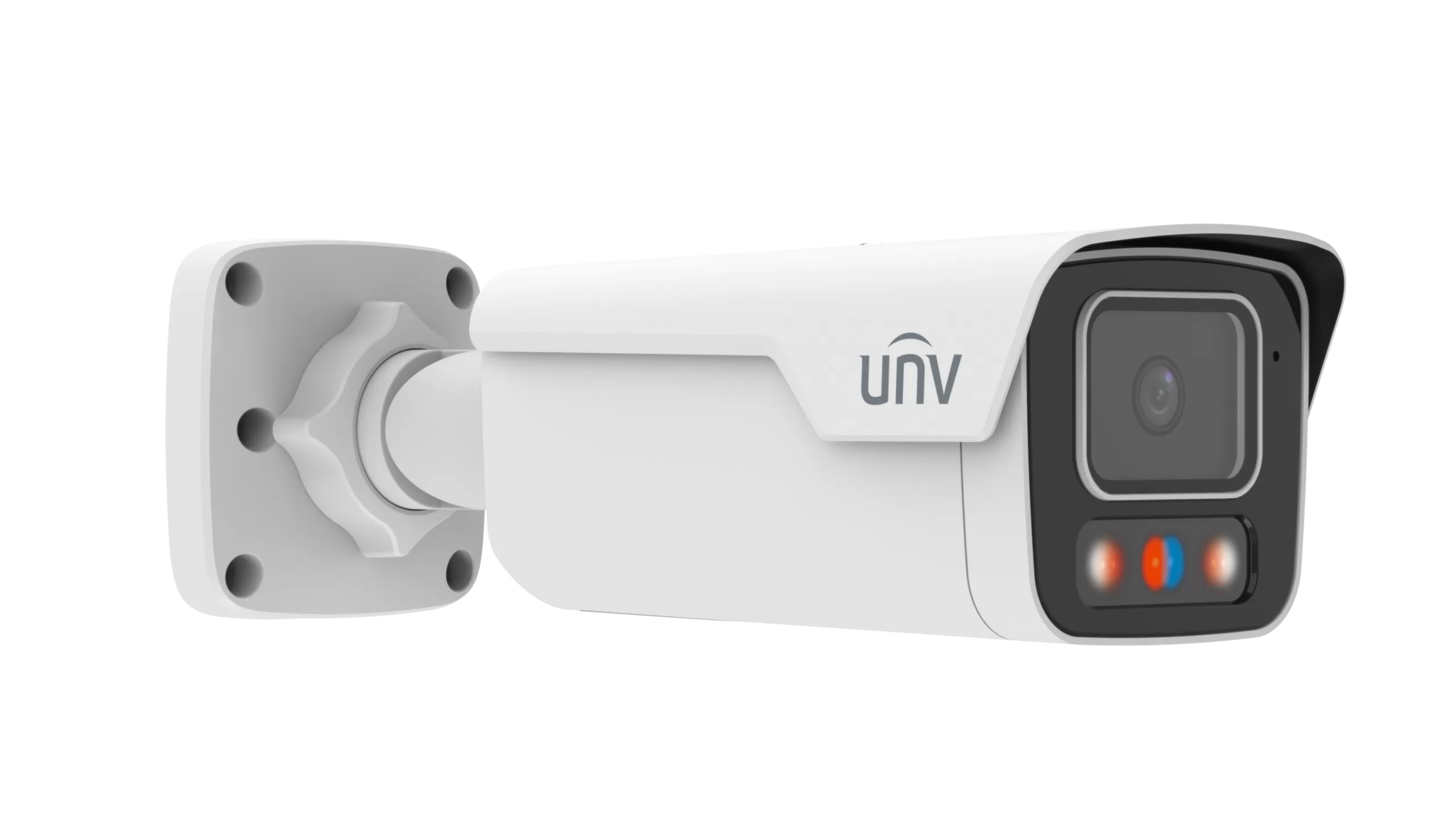

Uniview 8 MP Tri-Guard Bullet Camera 2.8mm
Model: IPC2B18SS-ADF28KMC-I1
Resolution: 8 MP
Key Features
- High quality image with 8MP, 1/2.8″CMOS sensor
- 8MP (3840*2160)@ 30/25(default)fps; 5MP (3072*1728)@ 30/25fps; 4MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- Smart intrusion prevention with Color retrieval
- Auto Scene Match (ASM)（Only WDR）
Why Choose This Camera?
Tri-Guard active-deterrence series with built-in light and siren. Built-in Active Deterrence combines a strobe light and audio alarm so the camera can warn off intruders the moment a smart-detection event fires.
Installation
Wall or pole mount with the integrated bracket; junction box recommended for cable protection. Single PoE cable for power and data.
Specifications
| Series | Advance |
|---|---|
| Megapixel | 8MP |
| Product Type | Bullet |
| Lens Length | Fixed |
| Compliance | IP67, NDAA |
| Features | Active Deterrence, AI |
| Max Resolution | 8 MP |
| Sensor | 1/2.8″ CMOS |
| Min. Illumination | Colour: 0.001 lux ( F1.0, AGC ON) 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| S/N | >56 dB |
| WDR | 130 dB |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 106.5° |
| Field of View (V) | 57.9° |
| Field of View (D) | 132° |
| DORI Distance (Lens) | 2.8mm |
| DORI Distance (Detect) | 86.9m(285.1ft) |
| DORI Distance (Observe) | 34.8m(114.2ft) |
| DORI Distance (Recognize) | 17.4m(57.1ft) |
| DORI Distance (Identify) | 8.7m(28.5ft) |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | IR 40 m, Warm Light 40 m |
| Illumination Distance (Warm Light) | IR 40 m, Warm Light 40 m |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple Streams |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
All Uniview products include a 1-year warranty. Professional installation available in Edmonton and across Alberta — contact us for a quote.
