Description

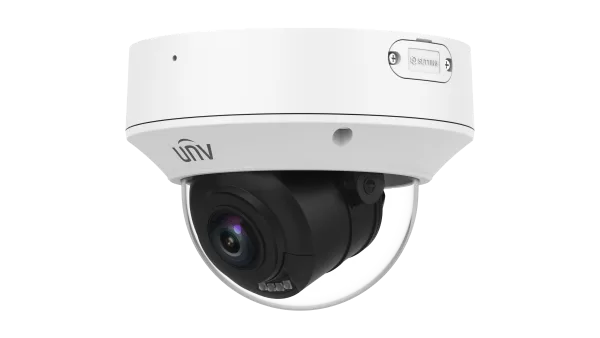

Uniview 4 MP VF Dome Camera 2.7-13.5mm
Model: IPC3234SB-ADZKM-DL-I1
Resolution: 4 MP
Lens: Vari-Focal
Key Features
- High quality image with 4 MP, 1/2.9″ CMOS sensor
- 4 MP (2688 × 1520)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection
- Support ultra motion detection
- Intelligent people flow counting and crowd density monitoring
- 120 dB true WDR technology enables clear image in strong light scene
- Supports 9:16 corridor mode
Installation
Ceiling or wall mount with included hardware; junction box or wall bracket sold separately. 3-axis gimbal for precise aiming. Single PoE cable for power and data.
Specifications
| Series | Advance |
|---|---|
| Megapixel | 4MP |
| Product Type | Dome |
| Lens Length | Vari-Focal |
| Compliance | IK10, IP67 |
| Max Resolution | 4 MP |
| Sensor | 1/2.9″ CMOS |
| Min. Illumination | Color: 0.001 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 355°, Tilt: 0° to 76°, Rotate: 0° to 355° |
| WDR | 120 dB |
| S/N | > 52 dB |
| Focal Length | 2.7 to 13.5 mm |
| Iris | F1.2 |
| Field of View (H) | 107.4° to 29.2° |
| Field of View (V) | 57.2° to 17.0° |
| Field of View (D) | 124.6° to 32.5° |
| Lens Type | Motorized |
| Iris Type | Fixed |
| DORI Distance (Lens) | 2.7 to 13.5 mm |
| DORI Distance (Detect) | 60.8 m to 303.8 m (199.5 ft. to 996.7 ft) |
| DORI Distance (Observe) | 24.3 m to 121.5 m (79.7 ft. to 398.6 ft) |
| DORI Distance (Recognize) | 12.2 m to 60.8 m (40.0 ft. to 199.5 ft) |
| DORI Distance (Identify) | 6.1 m to 30.4 m (20.0 ft. to 99.7 ft) |
| Illumination Distance (IR) | 40 m (131.2 ft) |
| Illumination Distance (Warm Light) | 40 m (131.2 ft) |
| Wavelength | 850 nm |
| Supplemental Light | Dual light |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
| Smart IR | Support |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| Digital Noise Reduction | 2D/3D DNR |
All Uniview products include a 1-year warranty. Professional installation available in Edmonton and across Alberta — contact us for a quote.
