Description

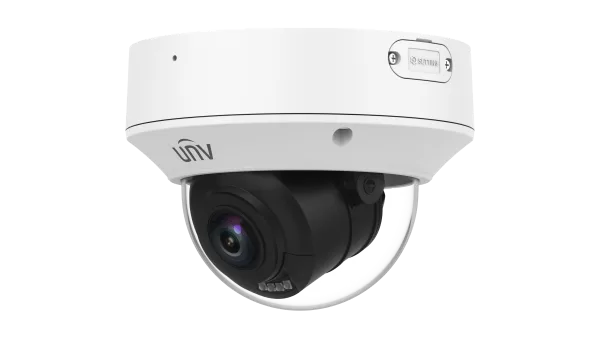

Uniview 8 MP VF Dome Camera 2.8-12mm
Model: IPC3238SB-ADZKM-DL-I1
Resolution: 8 MP
Lens: Vari-Focal
Key Features
- High quality image with 8 MP, 1/2.7″ CMOS sensor
- 8 MP (3840 × 2160)@25/24 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection
- Support ultra motion detection
- Intelligent people flow counting and crowd density monitoring
- 120 dB true WDR technology enables clear image in strong light scene
- Supports 9:16 corridor mode
Installation
Ceiling or wall mount with included hardware; junction box or wall bracket sold separately. 3-axis gimbal for precise aiming. Single PoE cable for power and data.
Specifications
| Series | Advance |
|---|---|
| Megapixel | 8MP |
| Product Type | Dome |
| Lens Length | Vari-Focal |
| Compliance | IK10, IP67 |
| Max Resolution | 8 MP |
| Sensor | 1/2.7″ CMOS |
| Min. Illumination | Color: 0.002 Lux (F1.4, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 355°, Tilt: 0° to 76°, Rotate: 0° to 355° |
| WDR | 120 dB |
| S/N | > 52 dB |
| Focal Length | 2.8 to 12 mm |
| Iris | F1.4 |
| Field of View (H) | 111.5° to 34.4° |
| Field of View (V) | 58.7° to 19.2° |
| Field of View (D) | 132.5° to 39.4° |
| Lens Type | Motorized |
| Iris Type | Fixed |
| DORI Distance (Lens) | 2.8 to 12 mm |
| DORI Distance (Detect) | 81.0 m to 405.0 m (265.7 ft. to 1328.7 ft) |
| DORI Distance (Observe) | 32.4 m to 162.0 m (106.3 ft. to 531.5 ft) |
| DORI Distance (Recognize) | 16.2 m to 81.0 m (53.1 ft. to 265.7 ft) |
| DORI Distance (Identify) | 8.1 m to 40.5 m (26.6 ft. to 132.9 ft) |
| Illumination Distance (Warm Light) | 40 m (131.2 ft) |
| Illumination Distance (IR) | 40 m (131.2 ft) |
| Light On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Supplemental Light | Dual light |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
| Smart IR | Support |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
All Uniview products include a 1-year warranty. Professional installation available in Edmonton and across Alberta — contact us for a quote.
