Description

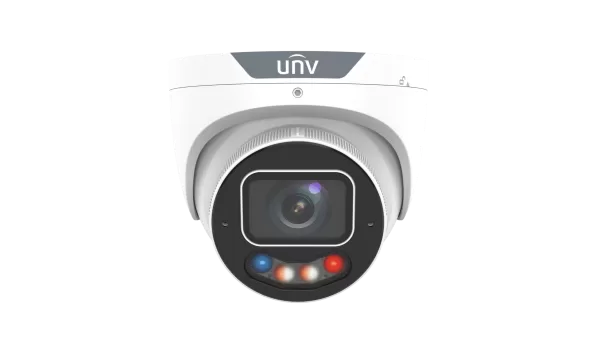

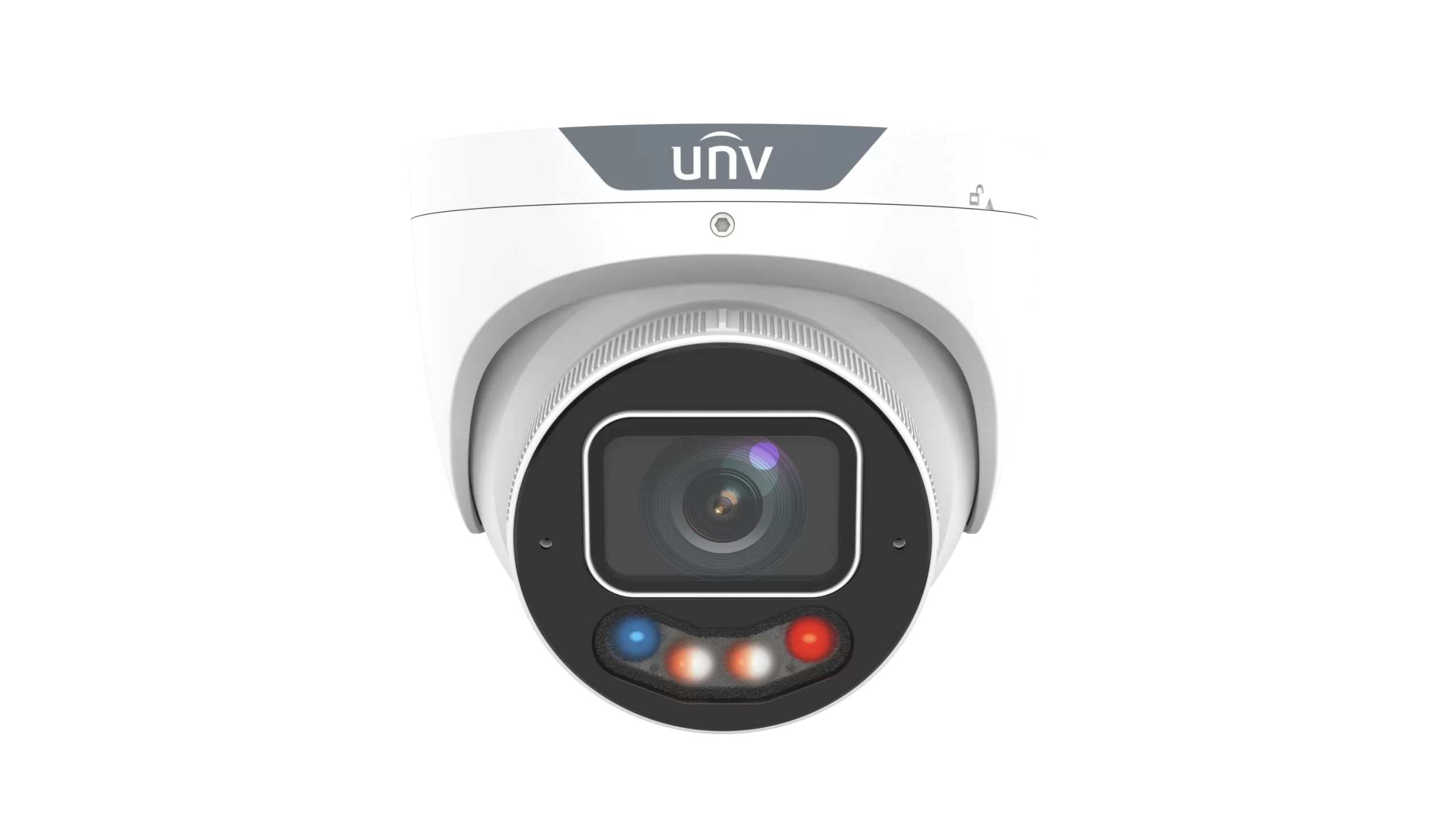

Uniview 8 MP OwlView Plus ColorHunter VF Turret Camera 2.8-12mm
Model: IPC3638SE-ADZKMC-WP-I1
Resolution: 8 MP
Lens: Vari-Focal
Key Features
- High quality image with 8MP, 1/1.8″ CMOS sensor
- Features an F1.2 large-aperture lens
- 8MP (3840 × 2160)@30/25 (default) fps; 5MP (3072 × 1728)@30/25 fps; 4MP (2560 × 1440)@30/25 fps; 2MP (1920 × 1080)@30/25 fps
- Ultra 265, H.265, H.264, MJPEG
- Colorhunter with Wise ISP technology ensures 24 hour full color images
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc.,
- accurately focus on human and, motor vehicle and non motor vehicle
Why Choose This Camera?
Uniview’s flagship OwlView Plus series with Wise-ISP imaging and a 1/1.2″ sensor. ColorHunter imaging delivers true full-colour video around the clock; a warm-light LED supplements the scene at night so faces, vehicle plates, and clothing colours stay visible.
Installation
Surface or wall mount with included hardware. Junction box (sold separately) recommended for clean cable management. 3-axis adjustment for flexible positioning. Single PoE cable required — no separate power supply needed.
Specifications
| Series | Professional |
|---|---|
| Megapixel | 8MP |
| Product Type | Turret |
| Lens Length | Vari-Focal |
| Compliance | IK10, IP67, NDAA, NEMA 4X |
| Features | Wise-ISP |
| Max Resolution | 8 MP |
| Sensor | 1/1.8″ CMOS |
| Min. Illumination | Color: 0.0005 Lux (F1.2, AGC ON) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N | > 56 dB |
| WDR | 130 dB |
| Focal Length | 2.8 to 12 mm |
| Iris Type | Fixed |
| Iris | F1.2 |
| Field of View (H) | 111.5° to 54.1° |
| Field of View (V) | 60.2° to 30.6° |
| Field of View (D) | 128.7° to 61.9° |
| Lens Type | Motorized |
| DORI Distance (Lens) | 2.8 to 12 mm |
| DORI Distance (Detect) | 63.0 m to 270.0 m (206.7 ft. to 885.8 ft) |
| DORI Distance (Observe) | 25.2 m to 108.0 m (82.7 ft. to 354.3 ft) |
| DORI Distance (Recognize) | 12.6 m to 54.0 m (41.3 ft. to 177.2 ft) |
| DORI Distance (Identify) | 6.3 m to 27.0 m (20.7 ft. to 88.6 ft) |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate-Main Stream | 8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps |
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Frame Rate-Third Stream | D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
All Uniview products include a 1-year warranty. Professional installation available in Edmonton and across Alberta — contact us for a quote.
