Description

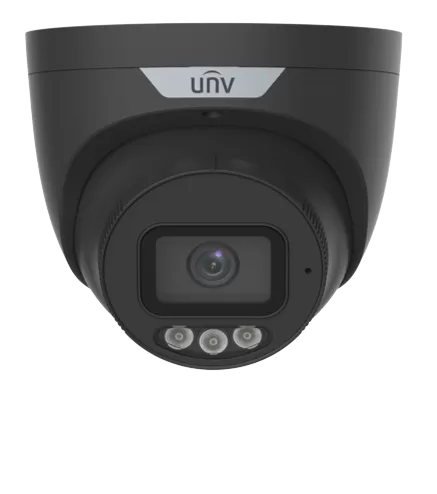

Uniview 8 MP Tri-Guard Turret Camera 2.8mm (Black)
Model: IPC3638SS-ADF28KMC-I1-BK
Resolution: 8MP
Key Features
- High quality image with 8MP, 1/2.8″CMOS sensor
- 8MP (3840*2160)@ 30/25(default)fps; 5MP (3072*1728)@ 30/25fps; 4MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- Smart intrusion prevention with Color retrieval
- Auto Scene Match (ASM)（Only WDR）
Why Choose This Camera?
Tri-Guard active-deterrence series with built-in light and siren. Built-in Active Deterrence combines a strobe light and audio alarm so the camera can warn off intruders the moment a smart-detection event fires.
Installation
Surface or wall mount with included hardware. Junction box (sold separately) recommended for clean cable management. 3-axis adjustment for flexible positioning. Single PoE cable required — no separate power supply needed.
Specifications
| Series | Professional |
|---|---|
| Megapixel | 8MP |
| Product Type | Turret |
| Lens Length | Fixed |
| Compliance | IP67, NDAA |
| Features | Active Deterrence, AI |
| Sensor | 1/2.8″, 8.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Colour: 0.001 Lux (F1.0, AGC ON) 0 lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 130dB |
| S/N | >56dB |
| Iris | Fixed |
| IR Range | Up to 30m (98.4 ft) |
| Warm Light Range | Up to 30m (98.4 ft) |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Triple streams |
| Auto Scene Match (ASM) | Support（Only WDR） |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring |
| Attribute Collection | SIP with color retrieval |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication |
| Audio Compression | G.711U, G.711A |
All Uniview products include a 1-year warranty. Professional installation available in Edmonton and across Alberta — contact us for a quote.
