Description

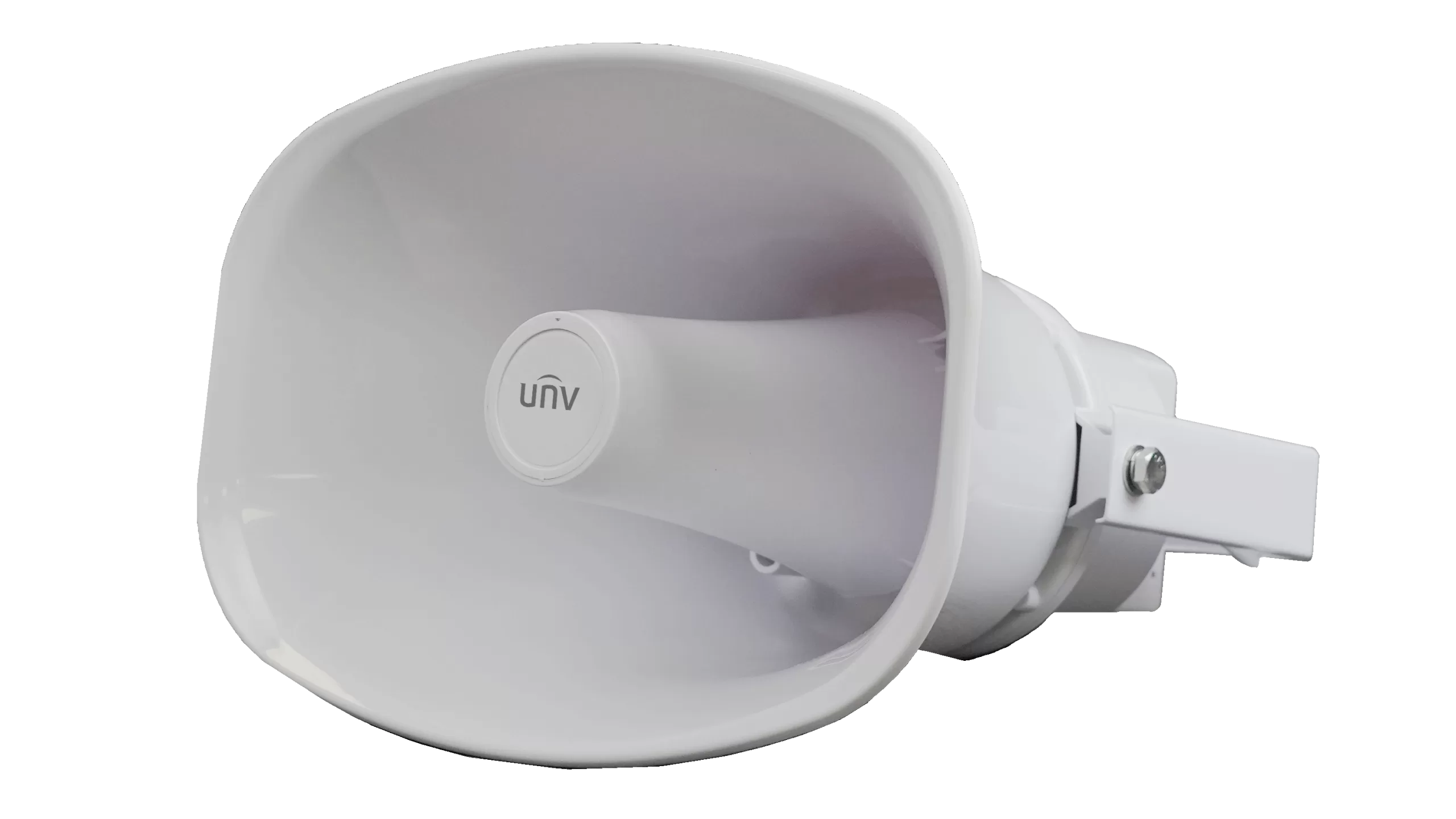

Uniview 30 W Outdoor IP Speaker
Model: IPS302030-S
Key Features
- ● Built in 1 high-quality speaker with loud sound, long penetration and clear
- ● Support alarm broadcast with uniview NVR, video and audio linkage.
- ● Built in storage, support uploading custom audios
- ● Support two-way audio
- ● Support PoE power supply
Specifications
| Model | IPS302030-S |
|---|---|
| Rated Power | 30 W |
| Max. Acoustic Pressure | 130 dBSPL |
| Frequency Response | 100 Hz to 8 kHz |
| Impedance | 8 Ω |
| Material | ABS Plastic |
| Network Protocol | IPv4, HTTP, HTTPS, SSL/TLS, DNS, TCP, UDP, DHCP, UPnP, ARP, SSH |
| Interface Protocol (API) | ONVIF, RTSP, RTP, LAPI |
| Browser | Firefox 87+, Chrome 90+, Edge 90+, Safari 17+ |
| Amount | 1 |
| Sensitivity | -37 dBV/Pa |
| Sampling Rate | 8 kHz |
| Quantization Bits | 16 bit |
| Broadcast | Regular Broadcast, Live Broadcast, Alarm Broadcast |
| Two-Way Audio | Support |
| Audio Compression | G.711U |
| Audio File Format | MP3, WAV |
| Audio File Size | 2 KB ≤ Audio File Size ≤ 10 MB |
| Audio File Storage | 64 MB |
| Audio File Number | 100 (Include system built-in files ) |
| Network Interface | 1 RJ45 10 M/100 M self adaptive Ethernet Interface |
| Audio In | RCA (only be used for sound amplification,cannot be used for intercom) |
| Alarm In | 2 |
| Power Supply | PoE (IEEE 802.3at), DC 24 V/1.4 A, DC 12 V/2.5 A |
| Working Temperature | -30 ℃ to 55 ℃ (-22 ℉ to 131 ℉) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Dimensions | 282mm × 205mm× 285mm (11.1″×8.1″×11.2″) |
| Protection | IP66 |
All Uniview products include a 1-year warranty. Professional installation available in Edmonton and across Alberta — contact us for a quote.
