Description
- AI

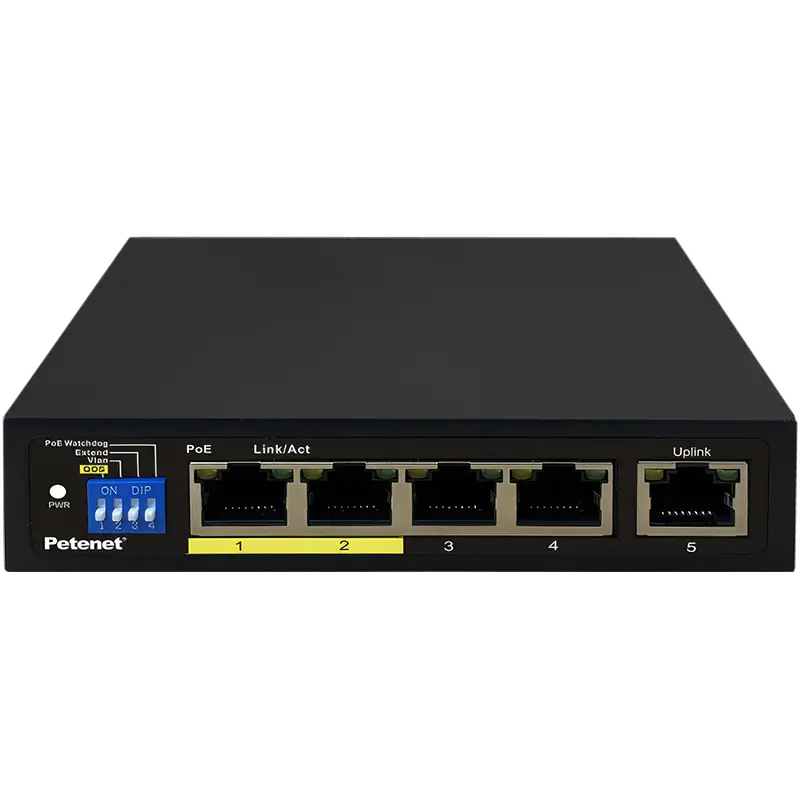

The PW2020-5G-IN is a 5-port unmanaged gigabit PoE+ switch with four PoE-PSE ports and one gigabit uplink, sized for small camera installs of up to 4 gigabit IP cameras including AI cameras requiring full gigabit throughput. Each PoE port supplies up to 30 W (IEEE 802.3at).
- 4 x gigabit PoE+ ports plus 1 x gigabit RJ45 uplink.
- 60 W total PoE budget — enough for 4 standard IP cameras.
- Plug-and-play; no configuration needed.
- Surge protection on each PoE port for outdoor cable runs.
- Compact fanless desktop form factor; metal chassis.
- Order code PW2020-5G-IN.
Specifications
| Technology | AI |
|---|---|
| Model | PW2020-5G-IN |
| Ports | 4X10/100/1000Mbps PoE ports (RJ45) 1X10/1000Mbps uplink port (RJ45) 1X10/1000Mbps SFP |
| Transmission Rate | 2000Mbps Full Duplex; 10 or 100 or 1000Mbps Half Duplex |
| Transmission Distance | 0-100m |
| Performance Specification | Bandwidth: 12.0Gbps |
| Networking Standard | IEEE 802.3i 10BASE-T |
| Power Support | Power input: DC 12~52V; PoE powered by Total≤60W PoE Watchdog: Port 1~4 Power output: PoE1~3Port:1/2(+52V),3/6(GND)≤30W PoE 4 Port:1245(+53V),3678(GND) compatible1/2(+52V),3/6(GND)≤60W |
| Protection Level | Lightning Protection: 6KV, Per: IEC61000-4-5 ESD Protection: 8KV, Per: IEC61000-4-2 |
| Physical Specifications | Size(L*W*H)：130mm*65mm*31mm |
| Working Environment | Operating Temperature: -10℃ ~ 55℃ ( -14° ~ 131℉) |
| Electromagnetic Compatibility | FCCPart15，Class B |
| Warranty | Whole machine: 1 year |
| Package Content | Installation Manual |
