320 Wh / 60 W Solar Power System with Heating — SLR-B320P60
320 Wh / 60 W Solar Power System with Heating — SLR-B320P60 - Image 2

320 Wh / 60 W Solar Power System with Heating — SLR-B320P60

$1,564.00

Uniview 320 Wh / 60 W Solar Power System with Heating.

  • Shipping: $30 flat rate anywhere in Canada, shipped from Edmonton, AB. Canadian addresses only.
  • Pricing: CAD, before tax. Applicable taxes are calculated at checkout.
  • Returns: 30 days, unused and in original packaging, 20% restocking fee. Hard drives, memory cards, software and anything installed or mounted are not returnable. Full returns policy.
  • Not sure it fits your system? Ask us or call 780-999-2813 before you order.
SKU: SLR-B320P60 Categories: , ,

Description

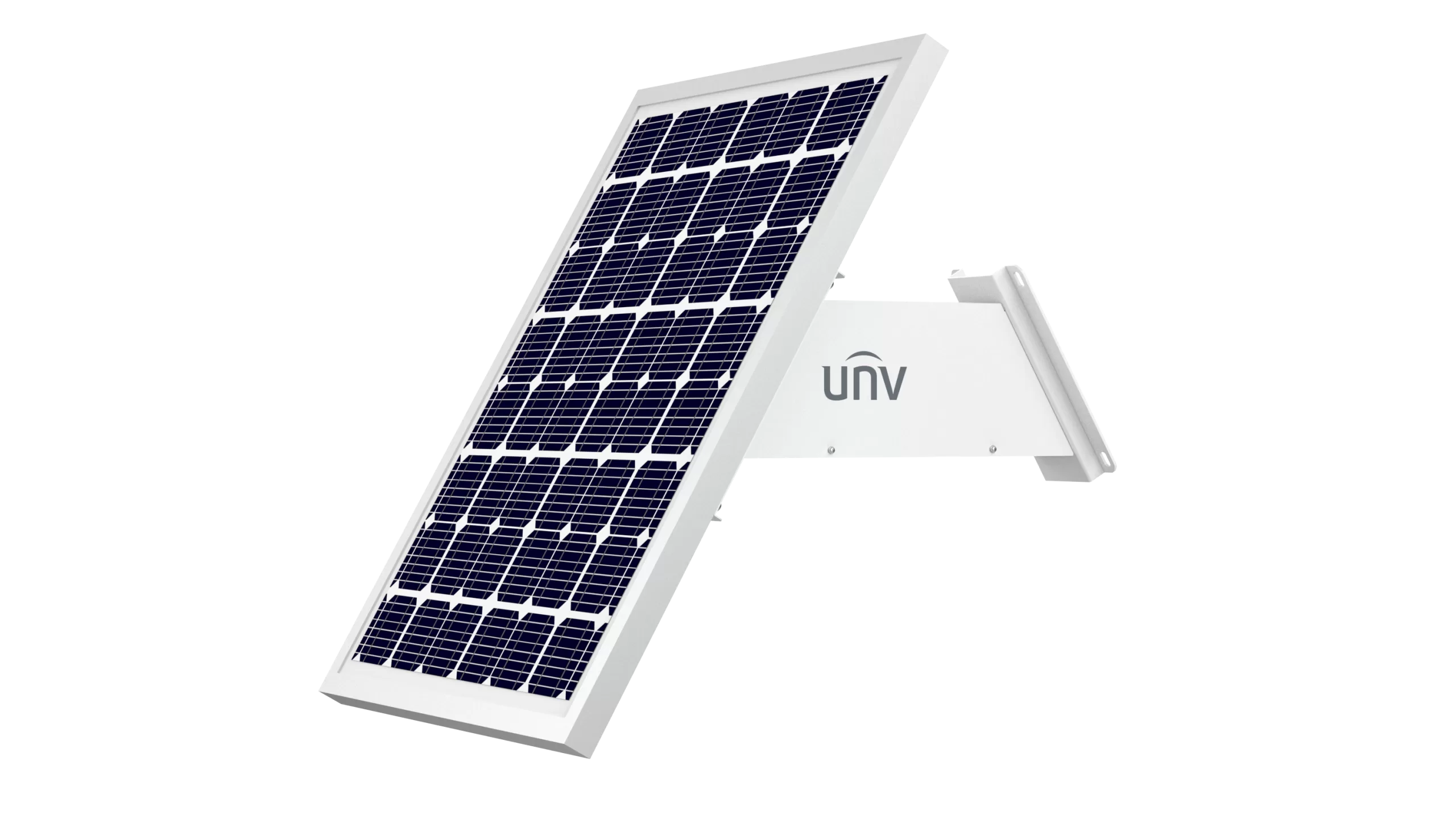

Uniview 320 Wh / 60 W Solar Power System with Heating

Model: SLR-B320P60

Key Features

  • Modular design for easy battery assembly, hanging design for easy solar panel installation.
  • Built-in high safety, high reliability, and long-life lithium battery cell is suitable for a wide range of application scenarios.
  • Built-in self-developed high-efficiency solar controller realizes faster charging.
  • Visual status indicator allows for easy understanding of the product’s operating status.
  • Multiple protection functions such as high and low battery temperature protection, overcharge protection, undervoltage protection, etc.
  • Metal casing, windproof and rainproof, capable of withstanding harsh outdoor environments.
  • Built-in heating module can be turned on in a low temperature environment, effectively protecting the battery life and ensuring the safety of charging.
  • Back surface field and electrodes are made of high-quality metal pastes, ensuring good conductivity.

Specifications

Battery capacity 100 Ah
Rated energy 320 Wh
Limited charge voltage 7 V
Output voltage 9 V to 12.6 V
Maximum output current 2 A
Input interface type DC 12 V circular connector
Output interface type 4-pin quick connector (for battery switch)
RS485 Support
Dimensions 90 × 90 × 38.3 mm
Protection function High/low temperature protection, overcharge protection, undervoltage protection
Peak power 60 W
Operating voltage 4.5 V
Operating current 13.33 A
Open circuit voltage 12 V
Short circuit current 14.66 A
Cell conversion efficiency ≥ 22%
Typical power consumption 0.84 W
Maximum power consumption 2 W
Reset button Support
Indicator Blinking green: Normal operation; Steady red: Network error
Ingress protection IPX5
Accessory One-to-two power cable
Operating temperature -20 ℃ to 55 ℃ (discharge)-20 ℃ to 45 ℃ (charge)
Weight 9.18KG (Lithium Battery : 4.61KG, Solar Panel : 4.42KG, Operation and Maintenance Module : 150g)
Suitable pole diameter 67mm to 110 mm

All Uniview products include a 1-year warranty. Professional installation available in Edmonton and across Alberta — contact us for a quote.

Product Specification Sheet

Download Spec Sheet (PDF)

Official Uniview product datasheet with full specifications.
