Description

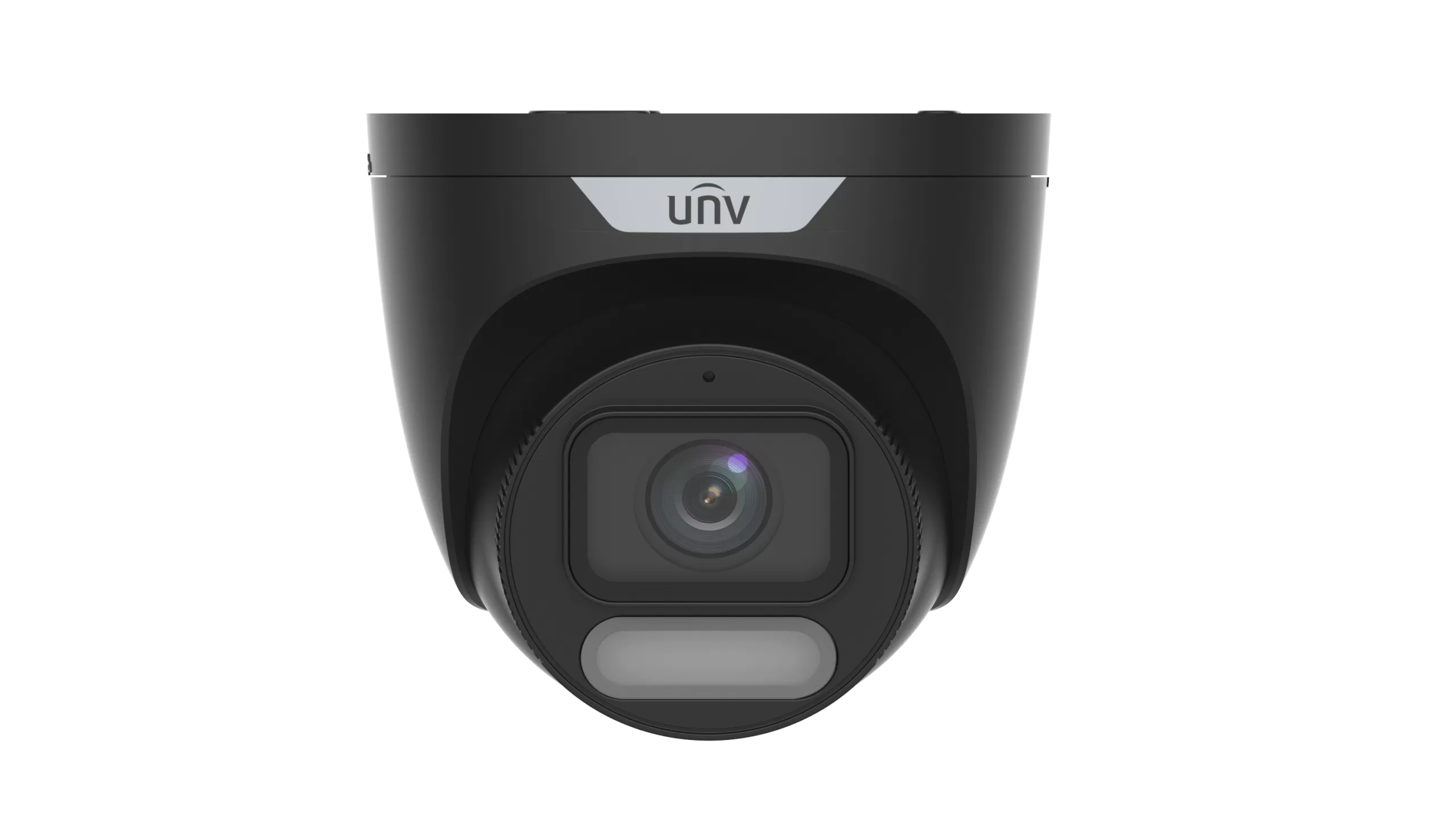

Uniview 4 MP OwlView Plus ColorHunter Turret Camera 2.8mm (Black)
Model: IPC3624SR-ADF28KM-WP-BK
Resolution: 4MP
Key Features
- High quality image with 4MP, 1/1.8″CMOS sensor and F1.0 large aperture lens
- 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Colorhunter with Wise ISP technology ensures 24 hour full color images
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- White Light, up to 30m (98ft) warm light distance
- Supports 256 GB Micro SD card
Why Choose This Camera?
Uniview’s flagship OwlView Plus series with Wise-ISP imaging and a 1/1.2″ sensor. ColorHunter imaging delivers true full-colour video around the clock; a warm-light LED supplements the scene at night so faces, vehicle plates, and clothing colours stay visible. Wise-ISP processing — Uniview’s flagship night-imaging engine — produces low-noise, full-colour images in scenes a conventional IR camera would render in monochrome.
Installation
Surface or wall mount with included hardware. Junction box (sold separately) recommended for clean cable management. 3-axis adjustment for flexible positioning. Single PoE cable required — no separate power supply needed.
Specifications
| Series | Advance |
|---|---|
| Megapixel | 4MP |
| Product Type | Turret |
| Lens Length | Fixed |
| Compliance | IP67, NDAA |
| Features | ColorHunter, Wise-ISP |
| Camera | Description |
| Resolution | 4MP |
| Sensor | 1/1.8″ CMOS |
| Min. Illumination | Colour: 0.0003 lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | 120dB |
| Lens | Description |
| Lens type | IPC3624SR-ADF28KM-WP:2.8mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | IPC3624SR-ADF28KM-WP:110.4° |
| Field of View (V) | IPC3624SR-ADF28KM-WP:60.5° |
| Field of View (D) | IPC3624SR-ADF28KM-WP:115.2° |
| DORI | Description |
| DORI Distance(Lens) | IPC3624SR-ADF28KM-WP:2.8mm |
| DORI Distance(Detect) | IPC3624SR-ADF28KM-WP:43.4m(142.5ft) |
| DORI Distance(Observe) | IPC3624SR-ADF28KM-WP:17.4m(57.0ft) |
| DORI Distance(Recognize) | IPC3624SR-ADF28KM-WP:8.7m(28.5ft) |
| DORI Distance(Identify) | IPC3624SR-ADF28KM-WP:4.3m(14.3ft) |
| Illuminator | Description |
| Illumination Distance(Warm Light) | 30m |
| Light On/Off Control | Auto/Manual |
| Video | Description |
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; |
| Video Bit Rate | 128 Kbps~6144Kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video stream | Dual streams |
All Uniview products include a 1-year warranty. Professional installation available in Edmonton and across Alberta — contact us for a quote.
