Description

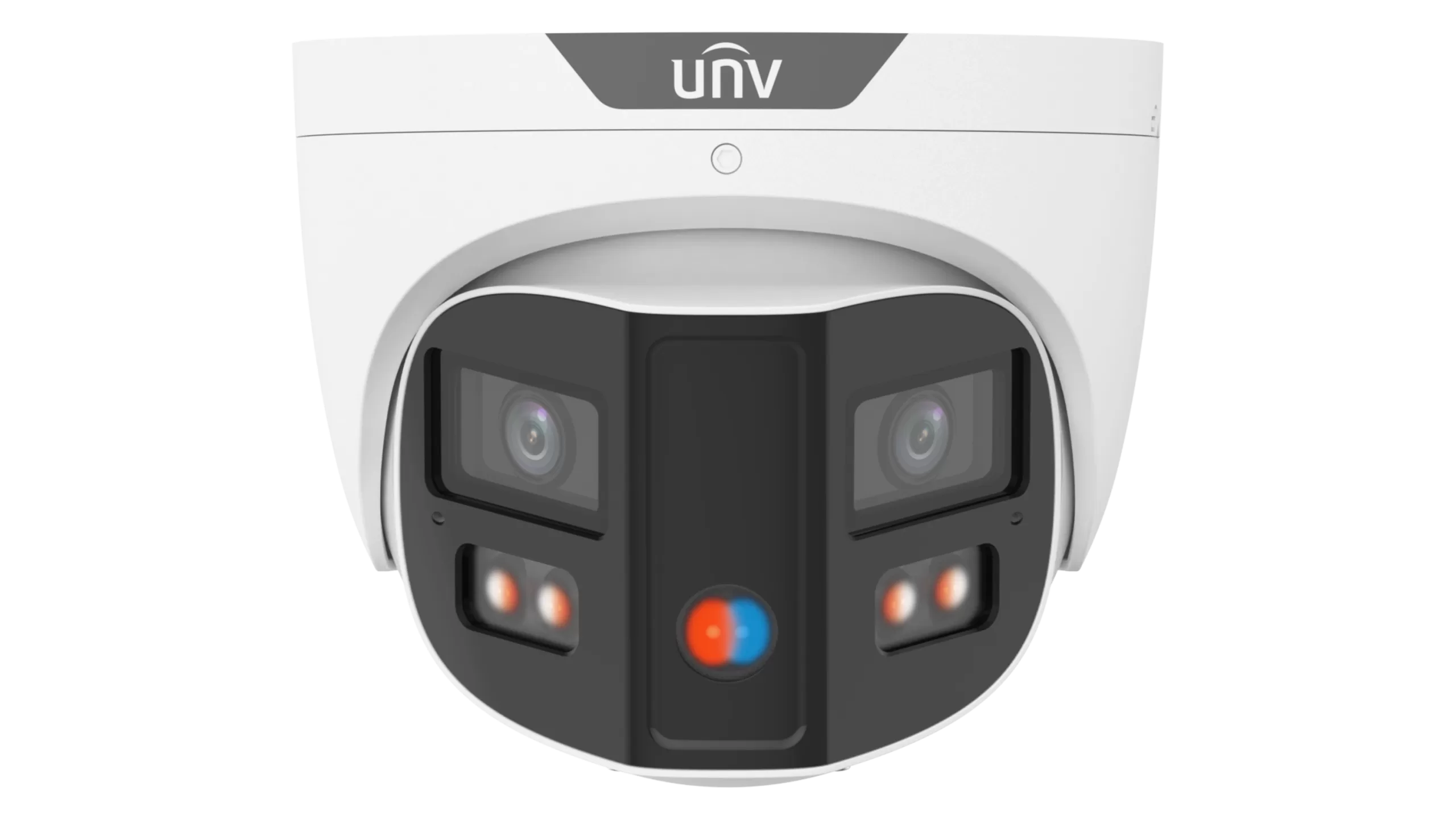

Uniview 8 MP Tri-Guard 2.0 OmniView 180° Dual-Light Camera 2.8mm
Model: IPC3K28SE-ADF28KMC-DL-I0
Resolution: 8 MP
Lens: 2.8 mm
Key Features
- High quality image with 8MP, 1/2.5″CMOS sensor
- 8MP (4096*1860)@20fps
- The double lens splicing technology is adopted to realize the horizontal viewing angle of 180°
- Colorhunter technology ensures 24-hour full-color images
- Support red & blue warning light
- 130dB true WDR technology enables clear image in strong light scene
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
Why Choose This Camera?
OmniView panoramic / multi-sensor series. Built-in Active Deterrence combines a strobe light and audio alarm so the camera can warn off intruders the moment a smart-detection event fires. ColorHunter imaging delivers true full-colour video around the clock; a warm-light LED supplements the scene at night so faces, vehicle plates, and clothing colours stay visible.
Specifications
| Series | Professional |
|---|---|
| Megapixel | 8MP |
| Compliance | IP67, NDAA |
| Features | Active Deterrence, AI, ColorHunter |
| Max Resolution | 8 MP |
| Sensor | 1/2.5″ CMOS |
| Min. Illumination | Colour: 0.0005 lux ( F1.0, AGC ON) 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| S/N | >52 dB |
| WDR | 130 dB |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 180° |
| Field of View (V) | 65° |
| Field of View (D) | 180° |
| Lens Type | Fixed |
| DORI Distance (Lens) | 2.8mm |
| DORI Distance (Detect) | 63.1m(206.7ft) |
| DORI Distance (Observe) | 25.2m(82.7ft) |
| DORI Distance (Recognize) | 12.6m(41.3ft) |
| DORI Distance (Identify) | 6.3m(20.7ft) |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | IR 30 m, Warm Light 30 m |
| Illumination Distance (Warm Light) | IR 30 m, Warm Light 30 m |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 8MP (4096*1860), Max 20fps; Sub Stream: 2048*936, Max 20fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual Streams |
| Auto Scene Match (ASM) | Support (Only WDR) |
All Uniview products include a 1-year warranty. Professional installation available in Edmonton and across Alberta — contact us for a quote.
