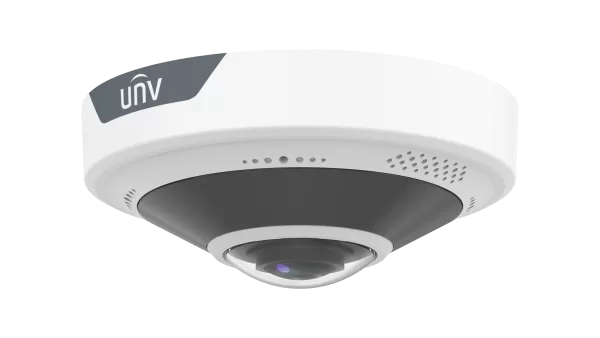

6 MP OmniView 360° Fisheye Camera 1.6mm — IPC816SB-ADF16KMC-I1

6 MP OmniView 360° Fisheye Camera 1.6mm — IPC816SB-ADF16KMC-I1

$893.00

130dB WDR130dB WDR
Ultra MotionUltra Motion
IntrusionIntrusion
Cross LineCross Line
Built-in MicBuilt-in Mic
Ultra H.265Ultra H.265
PoEPoE
IP67IP67
IK10IK10
180° Wide View180° Wide View
DewarpingDewarping
NDAA CompliantNDAA Compliant

Uniview 6 MP OmniView 360° Fisheye Camera 1.6mm. Built-in mic & speaker. PoE.

  • Shipping: $30 flat rate anywhere in Canada, shipped from Edmonton, AB. Canadian addresses only.
  • Pricing: CAD, before tax. Applicable taxes are calculated at checkout.
  • Warranty: 1-year warranty on all Uniview products.
  • Returns: 30 days, unused and in original packaging, 20% restocking fee. Hard drives, memory cards, software and anything installed or mounted are not returnable. Full returns policy.
  • Not sure it fits your system? Ask us or call 780-999-2813 before you order.
SKU: IPC816SB-ADF16KMC-I1 Categories: , ,

Description

Uniview 6 MP OmniView 360° Fisheye Camera 1.6mm

Model: IPC816SB-ADF16KMC-I1

Resolution: 6 MP

Key Features

  • High quality image with 6 MP, 1/2.5″ CMOS sensor
  • Max. 2560 × 2560 resolution
  • Ultra 265, H.265, H.264, MJPEG
  • Supports Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
  • Smart intrusion prevention, including cross line, intrusion
  • Support ultra motion detection
  • Heatmap: working with management platform, the data of moving objects is counted in real time on an intuitive color map
  • Ultra wide angle lens, 360° panoramic image

Why Choose This Camera?

OmniView panoramic / multi-sensor series.

Specifications

Series Advance
Megapixel 6MP
Product Type Fisheye
Lens Length Fixed
Compliance IK10, IP66, NDAA
Max Resolution 6 MP
Sensor 1/2.5″ CMOS
Min. Illumination Color: 0.005 Lux (F2.0, AGC ON), 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 to 1/100000 s
S/N > 52 dB
WDR 120 dB
Focal Length 1.6 mm
Iris Type Fixed
Field of View (H) 180 °
Field of View (V) 180 °
Field of View (D) 180 °
Iris F2.0
Lens Type Fixed
DORI Distance (Lens) 1.6 mm
DORI Distance (Detect) 36.0 m (118.1 ft)
DORI Distance (Observe) 14.4 m (47.2 ft)
DORI Distance (Recognize) 7.2 m (23.6 ft)
DORI Distance (Identify) 3.6 m (11.8 ft)
Illumination Distance (IR) 15 m (49.2 ft)
Supplemental Light IR
IR On/Off Control Auto/Manual
Wavelength 850 nm
Main Stream Fisheye View: 6 MP (2560 × 2560), max. 30 fps; 2048 × 2048, max. 30 fps; 1440 × 1440, max. 30 fps; Panorama View: 6 MP (2560 × 2560), max. 30 fps; 2048 × 2048, max. 30 fps; 1440 × 1440, max. 30 fps; PTZ View: 1920 × 1080, max. 30 fps
Sub Stream Fisheye View: 1024 × 1024, max. 30 fps
Video Compression Ultra 265, H.265, H.264, MJPEG
Third Stream Fisheye View: D1 (720 × 576), max. 30 fps; CIF (352 × 288), max. 30 fps
H.264 Code Profile Baseline profile, Main profile, High profile
Video Bit Rate 128 Kbps to 16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Octuple Streams
Hardware Decoding Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Table mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Wall mount: fisheye view, fisheye + 4PTZ, panorama view

All Uniview products include a 1-year warranty. Professional installation available in Edmonton and across Alberta — contact us for a quote.

Product Specification Sheet

Download Spec Sheet (PDF)

Official Uniview product datasheet with full specifications.
